LIGHT SOURCE:
-Lamp:230w lamp
-Color temp:8000K
SPECIFICATION:
Gobo
-17fixed gobos+white
Prism
-3rotating faced prism+6 faced prism , 2prisms can be overlaid.
Color
-714colors+white with rainbow effect
Frost
-0-100% linear automatic
-Two side handles for transportation.
Strobe
0-20HZ,1-10times/seconds
Angel
-Pan:540°（16bit）
-Tilt:270°(16bit)
Beam angle
2°
-Strobe：Variable
-Dimmer:0-100% Linear dimming
Luminous flux
28000LM
Protection rate
IP20

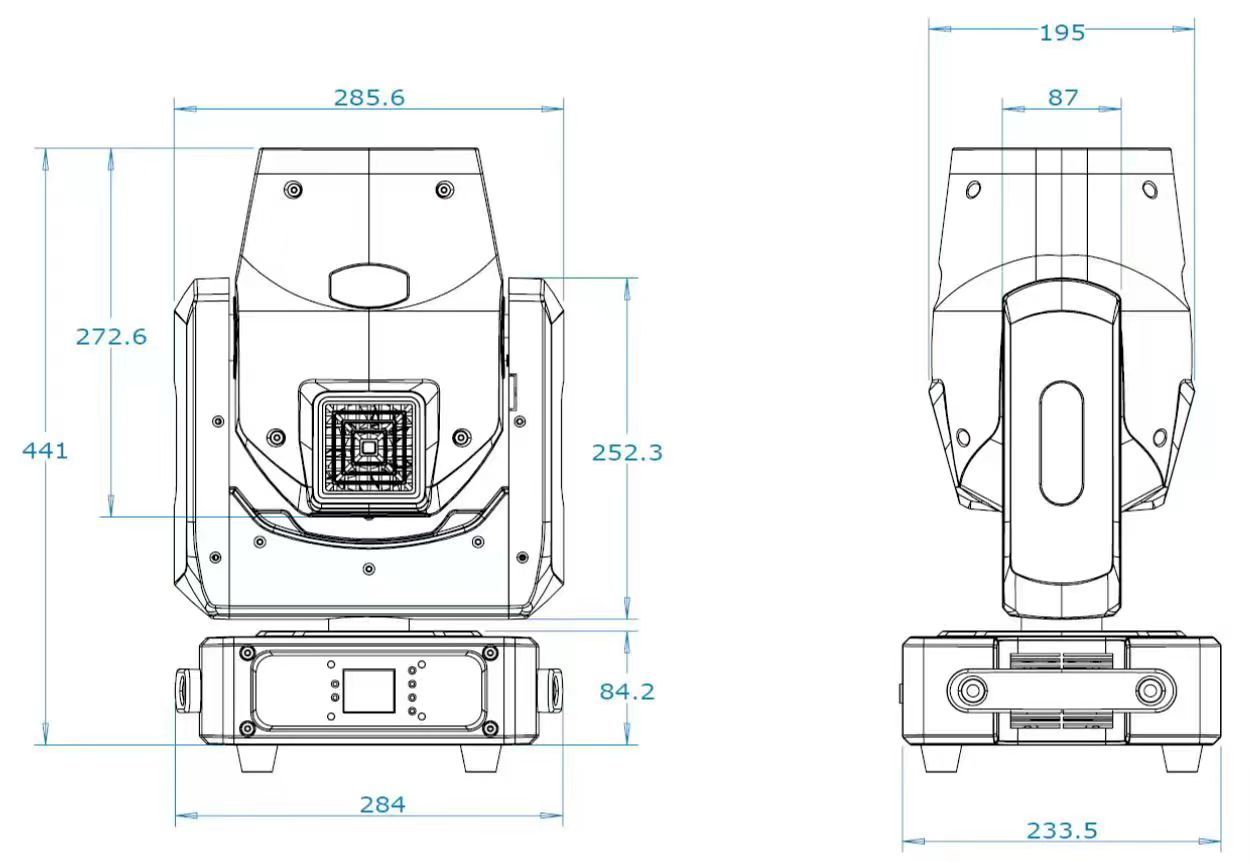

PHYSICAL SIZE
-Product size: 28.4*24*45cm
-Carton size:51*37*40cm
-Flightcase:55*43*53cm /38.5kg
-Net weight :11kg
CONTROL PROTOCOL AND PROGRAMMING
-USITT DMX 512/1990
-DMX Channels:36CH
-DMX512/ RDM / Auto mode / Mater-slave / Sound control
-Preset programs with adjustable speed
-LCD Display
AVAILABLE COLORS
-Black
-White (optional)

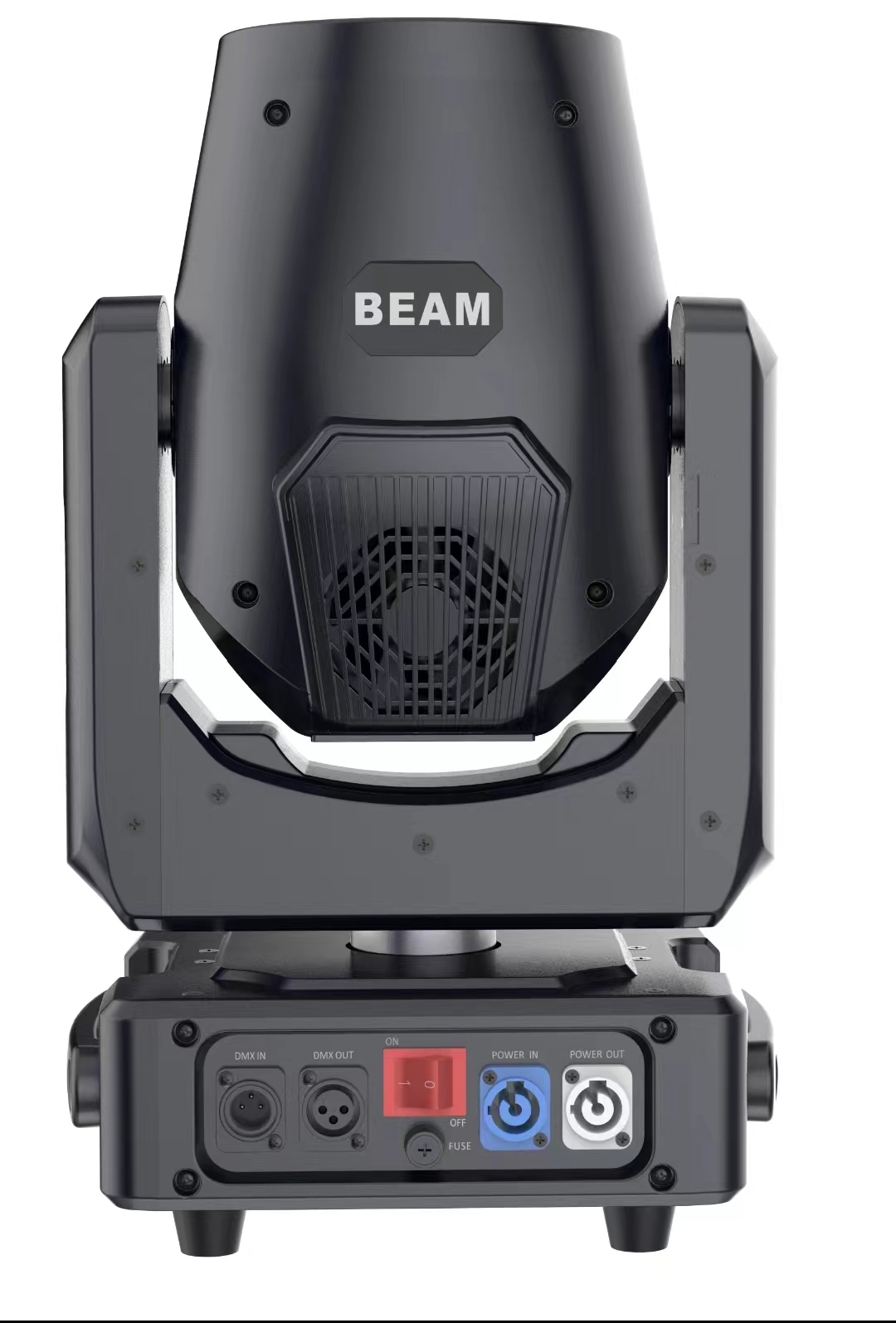

POWER/CONNECTION
-AC Power:90V-240V,50 60HZ
-Max power consumption:230W
-Power connection: Power 1in/
-DMX connection : 3pin DMX in and out
ACCESSORIES:
-Power cable
-DMX Cable
-Safety ring
-Flightcase / Carton
